Nyghtstalkr's R18 Turbo Build v2 - Turbo back from the Grave

18761 Views 58 Replies 17 Participants Last post by Austinkl93, Jun 22, 2015

Nyghtstalkr

Discussion Starter · Jan 9, 2013 (Edited)

The Car: 2008 Honda Civic LX R18 Automatic

So after a scattered build of nothing and a bunch of failed parts, I bring you Nyghtstalkr's R18 Turbo build v2.... Back from the grave. This car has been through a lot. I swore I'd never mod it for many reasons, but here it sits, boosted on a snail fed by straws. LoL. I am redoing my build thread for organizational purposes PLUS everything on my car has changed at this point, so time for a revamp on updates.

I am going to start this from the time my turbo was rebuilt back right after thanksgiving forward. Pics soon to follow.

TIMELINE:

UPDATED INFO COMING SOON

Videos:
Just messin around!

Exhaust

_____

_____
This is for sound comparison... This is a 2007 Si Stage 2 Comptech Supercharged with FullRace 3" exhaust and Skunk2 Alpha Racing header.

_____

_____

See less See more

1 - 20 of 59 Posts

Combatspace

· #2 · Jan 9, 2013

Pics or it didn't happen. Lol, sounds like quite an ordeal. Looking forward to updates.

Drop shipped to you from my GS2

Nyghtstalkr

Discussion Starter · #3 · Jan 10, 2013

Posted vids, but I'll update more when I get home

TerryAki

· #4 · Jan 10, 2013

Care to share how much you've invested into the turbo build? Also, was it worth it?

scratch the first question, didnt see the spreadsheet lol

Nyghtstalkr

Discussion Starter · #5 · Jan 10, 2013

Worth it? Hmmm, I love the instant power, but this car was never meant for boost plus my pocket book was never meant for this much hurt. Little odds and ends aren't on that spreadsheet i.e. tuning & re-tuning charges, bolts, fasteners, tools I didn't have that I needed to maintain it, and then my time and stress trying to fix this kit and bring it to the level it needed to be at for it to be working correctly and be reliable. If you get everything I have brand new, and start from scratch, and have the extra money for when things go wrong, then sure it can be worth it. The extra power and torque is addicting. It's all in the eye of the beholder. I am just bound and determined to get a reliable DD now... lol

reximus

· #6 · Jan 10, 2013

subed

Nyghtstalkr

Discussion Starter · #7 · Jan 10, 2013

Sweet

Nyghtstalkr

Discussion Starter · #8 · Jan 13, 2013

Here's a broken motor mount...

However, the Boomba mounts are in and working beautifully.

See less See more

Nyghtstalkr

Discussion Starter · #9 · Jan 20, 2013

Updated the list. It should be in the completed form.

Ghettojay

· #10 · Jan 30, 2013

can you post pics of the motor please

Nyghtstalkr

Discussion Starter · #11 · Jan 30, 2013

Sure. Let me take some and I will. Keep in mind they will be changing as I am trying to change how my charge pipes are routed.

Shawn_Thomas

· #12 · Feb 1, 2013

Great build. I watched some of your youtube videos and im super impressed. Exacty what I plan on doing, probably going to wait until my warrantee expires. Then again, by the time I save up for everything it'll probably be long over.

Nyghtstalkr

Discussion Starter · #13 · Mar 5, 2013

The Car goes to Ramey Built tonight. This is the same shop that welded the brackets on my intercooler. They are making a hole new exhaust pipe from turbo outlet to Vibrant Resonator on the Vibrant R18. It will be more straight, perfect angles and perfect placement on the O2 sensors. While they are doing this, I will have them replace my coolant lines and fittings so they do not leak any more. They will also be welding a bung on my charge piping for my External IAT sensor (2000 Prelude Base IAT sensor). I will also have them see about battery relocation and moving my intake piping to the front driver side fender area so it is pulling cooler air. I will also be seeing about them fixing my AC Line and the charge piping so it is not rubbing. I will let you giys know how things go. I hope they will get everything up and running great. I'm also going to see about having them put the Auto Tranny Cooler on too.

See less See more

danielsayz

· #14 · Mar 19, 2013

hey OP why did you use a 2000 prelude base iat sensor? and how has the battery relocation gone along? i am interested in relocating the battery on my r18

Nyghtstalkr

Discussion Starter · #15 · Mar 27, 2013

I had to prolong the shop work by two weeks. I just dropped the car back off again tonight, so it will be done by next wednesday. I will take pics of everything when I'm done. If you want to see my exhaust work when Ramey Built is finished, you can add both myself and Ramey Built on Facebook. they are going to take pics of old exhaust and downpipe with the new one too along with all the other stuff. =)

I used a 2000 Prelude IAT because it has a screw mount base vs the RSX not having a base that can be screwed in. Plus the Prelude's sensor reads faster if you trim the plastic away from the tip and expose the sensor. From my understanding if you do this to the RSX sensor, you damage the sensor itself.

Nyghtstalkr

Discussion Starter · #16 · Apr 4, 2013

I went to Ramey Built tonight to see my car. =) Exhaust is already cut out. AC line is ordered. All charge pipes will be replaced (for free) and re-routed, and they are going to replace my valve cover gasket cause it looks like its leaking oil slightly. I'm stoked!

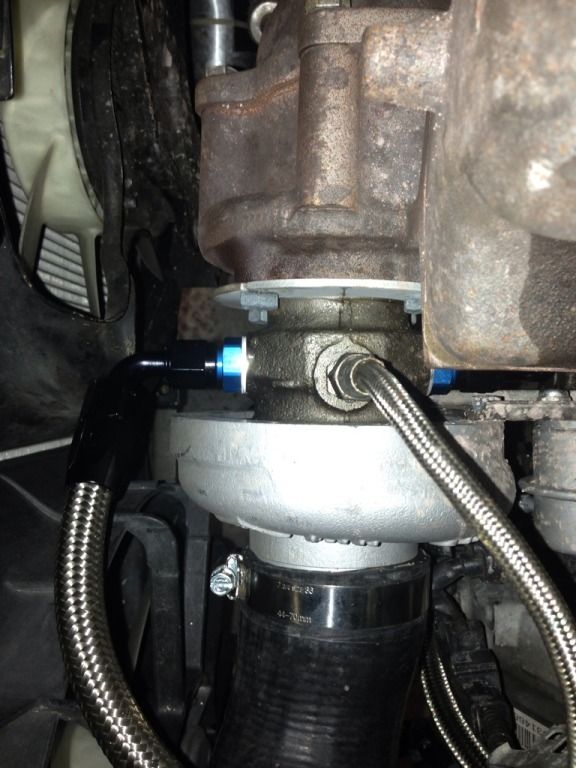

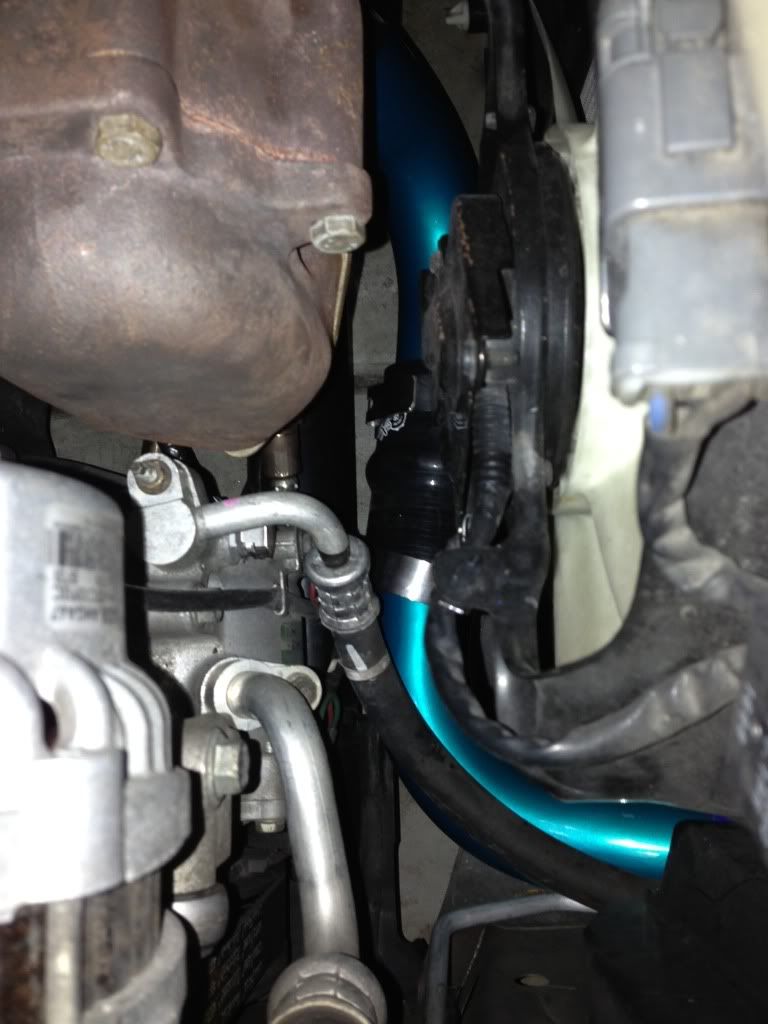

New Coolant Line Pics!

_____

_____

_____

_____

_____

Where the Intake pipe and filter are going!

_____

Charge pipe there will be changed to come up by chassis rail and go to the throttle body instead

_____

_____

_____
I like this shot!

So I am completely stoked here! I have some goodies that will take place that are a little bit of a secret until they are done, but they should be a nice addition!

OH!!! I dropped off my Forge UNOS MBC to them and they are going to try and get it working properly!!!!

See less See more

10

GRuiz8

· #17 · Apr 6, 2013

Dope.

Nyghtstalkr

Discussion Starter · #18 · Apr 6, 2013 (Edited)

Ok, here is she is, in progress. This is freakin awesome! This work has turned out to be so much better than I could have imagined!

Here starts the pics.... All of this is done by Ramey Built in Virginia Beach, VA

The new exhaust is 2.5" from turbo back. I kept the rear section of the Vibrant exhaust from the resonator back.

_____

_____

_____

_____
This is the old crappy downpipe that came with the kit:

_____
This is the old exhaust pipe from the crappy shop that did the original exhaust work.

_____

_____
The old slip joint stick weld job on the old exhaust pipe

_____

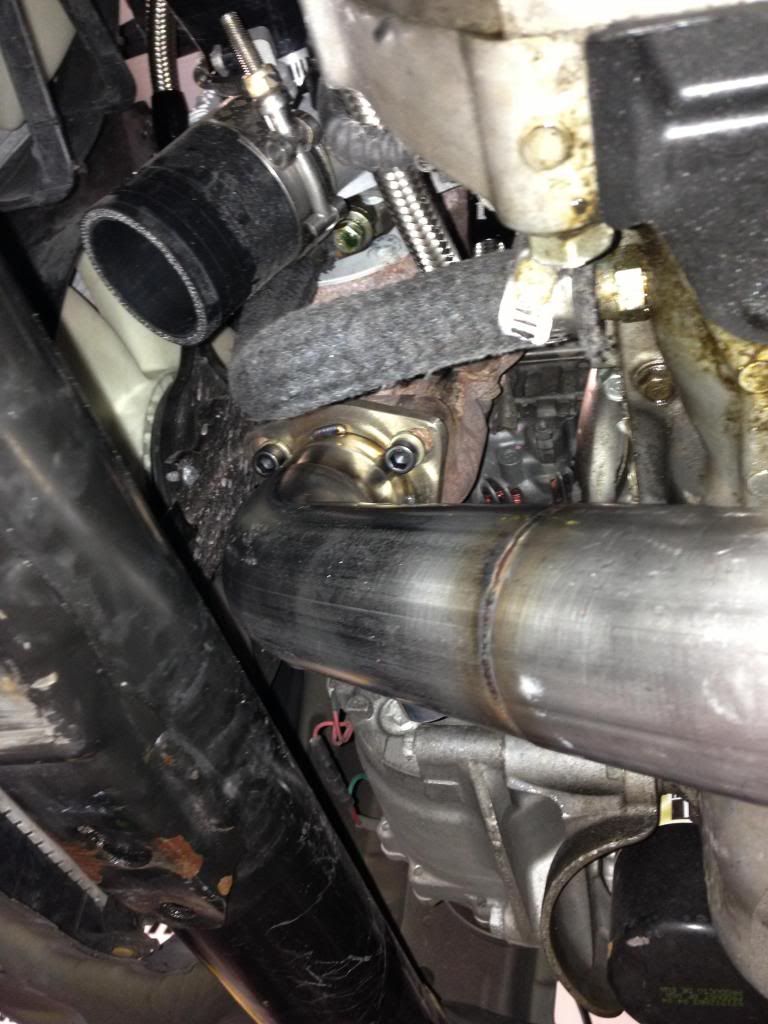

The new pipe!

_____

_____

_____
The Battery relocate wire routing

_____

_____

_____
The Positive Stud in the engine bay

_____

_____
The same post

_____
The upper EGR plate

_____

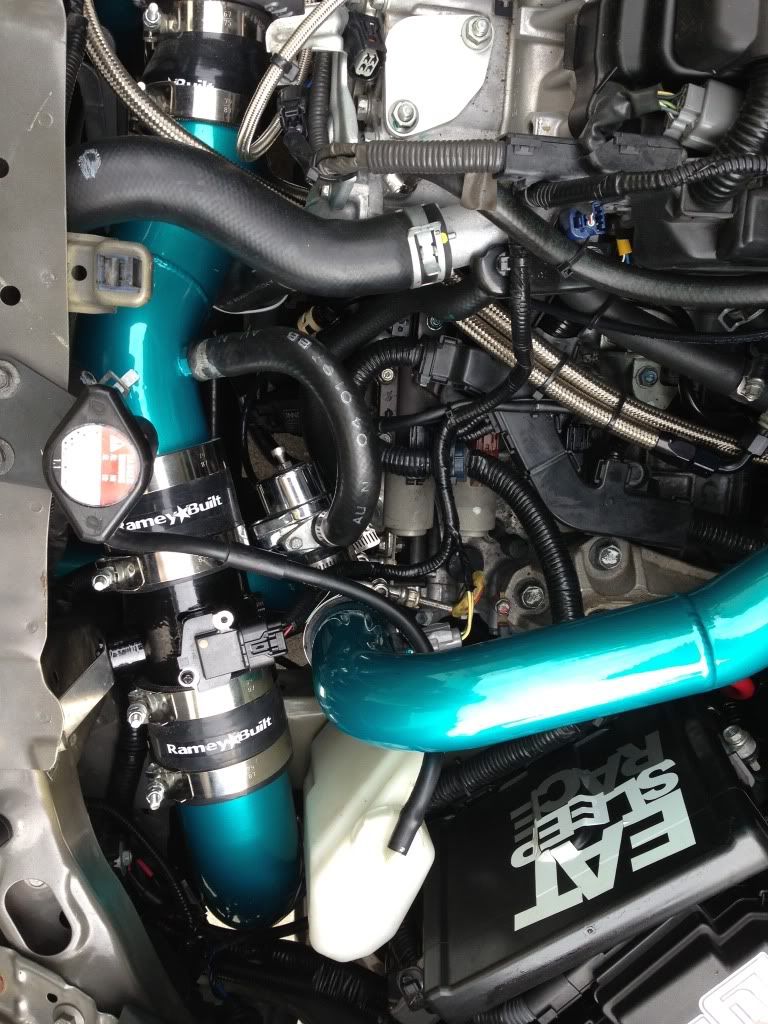

New charge pipe and intake routing! Mind you, this is a TSi Extreme R18 Kit, so this is COMPLETELY different than the kit's routing:

_____
This pipe will have a IAT bung welded on to it for the Prelude sensor.

_____
Here you can see the lower pipe.

_____
Another shot

_____
3" intake piping to turbo

_____
The other half of the 3" intake

_____
Another shot

_____
Taking the intake to the inner fender wall

_____
Filter drop on intake

_____

_____
New rubber cone lower engine mount

_____
Replaced the lower header bolts with Helicoil studs

_____

_____

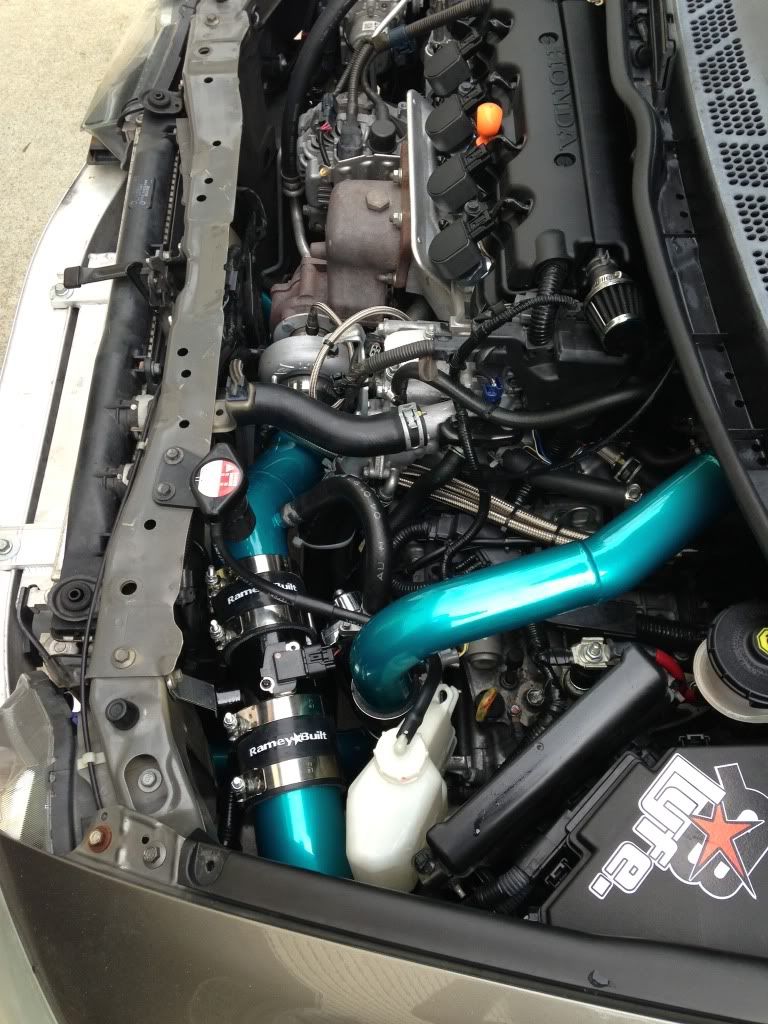

Overview shot

_____

_____

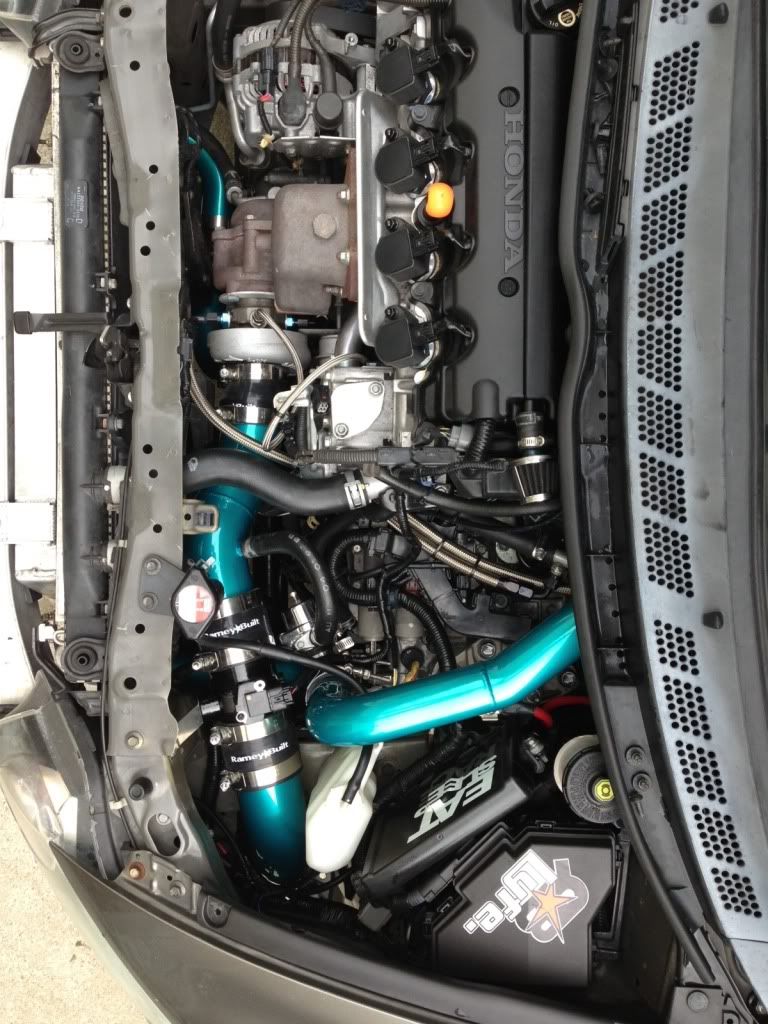

Frontal

Needless to say, I am completely stoked!!!!! I can NOT wait to see the finished product!!!!!!!!!

See less See more

34

Nyghtstalkr

Discussion Starter · #19 · Apr 9, 2013

209.75 whp 177.60 wtq.
Part throttle partial tuned, 17 degrees ignition on WOT, 12.2-12.8 AFR and 8.8 psi boost

Fab work and Dyno by Ramey Built in Virginia Beach, VA

____

____

____

See less See more

5

danielsayz

· #20 · Apr 9, 2013

Build looks amazing bro! What diameter is your charge piping? And what gauge and how many feet of wiring did you use to relocate the battery?
